Tutorial 1: Using TimeseriesExtractor

This module is designed to perform timeseries extraction, nuisance regression, and visualization. Additionally, it generates the necessary dictionary structure required for CAP. If the BOLD images have not been preprocessed using fMRIPrep (or a similar pipeline), the dictionary structure can be manually created.

The output in the Extracting Timeseries section is generated from a test run using GitHub Actions. This test uses a truncated version of the open dataset provided by Laumann & Poldrack [1] and was obtained from the OpenfMRI database, accession number ds000031.

Extracting Timeseries

Download test dataset used for Github Actions from Github.

import os, subprocess, sys

demo_dir = "neurocaps_demo"
os.makedirs(demo_dir, exist_ok=True)

if sys.platform != "win32":
    cmd = """
        cd neurocaps_demo
        git clone --depth 1 --filter=blob:none --sparse https://github.com/donishadsmith/neurocaps.git
        cd neurocaps
        git sparse-checkout set tests/data/dset
        """
    os.system(cmd)
else:
    repo_dir = os.path.join(demo_dir, "neurocaps")

    # Enable git longpath
    subprocess.run(
        ["git", "config", "--global", "core.longpaths", "true"],
        check=True,
    )

    subprocess.run(
        [
            "git",
            "clone",
            "--depth",
            "1",
            "--filter=blob:none",
            "--sparse",
            "https://github.com/donishadsmith/neurocaps.git",
        ],
        check=True,
        cwd=demo_dir,
    )

    subprocess.run(
        ["git", "sparse-checkout", "set", "tests/data/dset"],
        check=True,
        cwd=repo_dir,
    )

# Rename folder
os.makedirs("neurocaps_demo/data", exist_ok=True)
os.rename("neurocaps_demo/neurocaps/tests/data/dset", "neurocaps_demo/data/dset")

Note: when an asterisk (*) follows a name, all confounds that start with the preceding term will be automatically included. For example, placing an asterisk after cosine (cosine*) will utilize all parameters that begin with cosine.

from neurocaps.extraction import TimeseriesExtractor

confounds = ["cosine*", "a_comp_cor*", "rot*"]

parcel_approach = {"Schaefer": {"n_rois": 100, "yeo_networks": 7, "resolution_mm": 2}}

extractor = TimeseriesExtractor(
    space="MNI152NLin2009cAsym",
    parcel_approach=parcel_approach,
    standardize=True,
    use_confounds=True,
    low_pass=0.15,
    high_pass=None,
    confound_names=confounds,
)

extractor.get_bold(
    bids_dir="neurocaps_demo/data/dset",
    session="002",
    task="rest",
    pipeline_name="fmriprep_1.0.0/fmriprep",
    tr=1.2,
    progress_bar=True,  # Parameter available in versions >= 0.21.5
)

2025-04-15 18:02:15,929 neurocaps._utils.extraction.check_confound_names [INFO] Confound regressors to be used if available: cosine*, a_comp_cor*, rot*.
2025-04-15 18:02:17,442 neurocaps.extraction.timeseriesextractor [INFO] BIDS Layout: ...books\neurocaps_demo\data\dset | Subjects: 1 | Sessions: 1 | Runs: 1
2025-04-15 18:02:17,499 neurocaps._utils.extraction.extract_timeseries [INFO] [SUBJECT: 01 | SESSION: 002 | TASK: rest | RUN: 001] Preparing for Timeseries Extraction using [FILE: sub-01_ses-002_task-rest_run-001_space-MNI152NLin2009cAsym_desc-preproc_bold.nii.gz].
2025-04-15 18:02:17,516 neurocaps._utils.extraction.extract_timeseries [INFO] [SUBJECT: 01 | SESSION: 002 | TASK: rest | RUN: 001] The following confounds will be used for nuisance regression: cosine_00, cosine_01, cosine_02, cosine_03, cosine_04, cosine_05, cosine_06, a_comp_cor_00, a_comp_cor_01, a_comp_cor_02, a_comp_cor_03, a_comp_cor_04, a_comp_cor_05, rot_x, rot_y, rot_z.
Processing Subjects: 100%|██████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████| 1/1 [00:05<00:00,  5.73s/it]

print can be used to return a string representation of the TimeseriesExtractor class.

print(extractor)

Current Object State:
===========================================================
Preprocessed BOLD Template Space                           : MNI152NLin2009cAsym
Parcellation Approach                                      : Schaefer
Signal Clean Parameters                                    : {'masker_init': {'detrend': False, 'low_pass': 0.15, 'high_pass': None, 'smoothing_fwhm': None}, 'standardize': True, 'use_confounds': True, 'confound_names': ['cosine*', 'a_comp_cor*', 'rot*'], 'n_acompcor_separate': None, 'dummy_scans': None, 'fd_threshold': 0.35, 'dtype': None}
Task Information                                           : {'task': 'rest', 'session': '002', 'runs': None, 'condition': None, 'condition_tr_shift': 0, 'tr': 1.2, 'slice_time_ref': 0.0}
Number of Subjects                                         : 1
CPU Cores Used for Timeseries Extraction (Multiprocessing) : None
Subject Timeseries Byte Size                               : 15784 bytes

The extracted timeseries is stored as a nested dictionary and can be accessed using the subject_timeseries property. The TimeseriesExtractor class has several properties. Some properties can also be used as setters.

print(extractor.subject_timeseries)

{'01': {'run-001': array([[ 1.2033961 , -1.2330143 , -1.2266738 , ...,  0.79417294,
        0.03897883, -1.2275234 ],
    [-0.41716266,  0.18100384,  0.17953618, ..., -0.7285049 ,
        0.46337456,  0.232506  ],
    [-0.6353623 ,  0.52065367,  0.51416904, ..., -0.6392374 ,
        0.30418062,  0.5296185 ],
    ...,
    [-0.00439697, -0.33513063, -0.344346  , ..., -1.7402033 ,
        0.6538972 , -0.48667648],
    [-0.21270348,  0.5142317 ,  0.5091558 , ...,  0.5407353 ,
        -0.7391407 ,  0.4986693 ],
    [-0.13190913,  0.53207046,  0.53672856, ...,  1.6365708 ,
        -0.83822703,  0.65070736]], shape=(39, 100), dtype=float32)}}

Reporting Quality Control Metrics

Only censored frames with valid data on both sides are interpolated, while censored frames at the edge of the timeseries (including frames that border censored edges) are always scrubbed and counted in “Frames_Scrubbed”. Additionally, scipy’s Cubic Spline is used to only interpolate censored frames.

extractor.report_qc(output_dir=demo_dir, filename="qc.csv", return_df=True)

Subject_ID	Run	Mean_FD	Std_FD	Frames_Scrubbed	Frames_Interpolated	Mean_High_Motion_Length	Std_High_Motion_Length
01	run-001	0.10531541574999999	0.10997670447085037	1	0	1.0	0.0

Saving Timeseries

extractor.timeseries_to_pickle(output_dir=demo_dir, filename="rest_Schaefer.pkl")

Visualizing Timeseries

# Visualizing a region

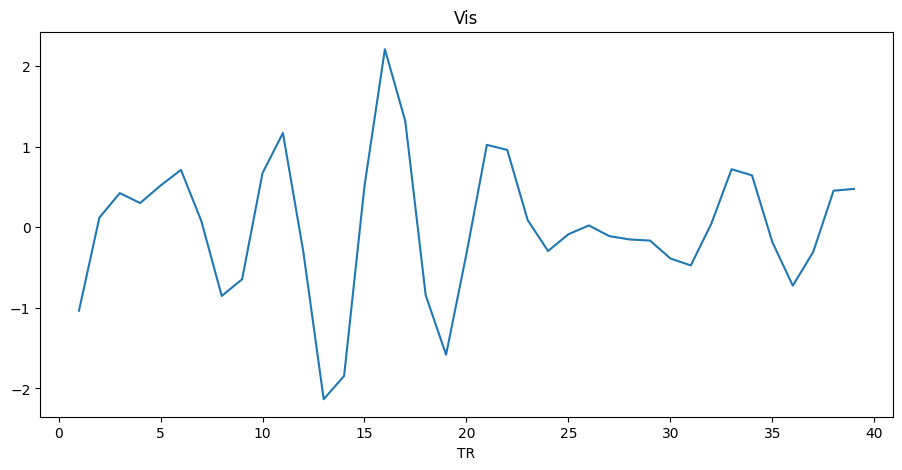

extractor.visualize_bold(subj_id="01", run="001", region="Vis")

# Visualizing a several nodes
extractor.visualize_bold(subj_id="01", run="001", roi_indx=[0, 1, 2])
extractor.visualize_bold(subj_id="01", run="001", roi_indx=["LH_Vis_1", "LH_Vis_2", "LH_Vis_3"])

---

[1]

Laumann, T. O., Gordon, E. M., Adeyemo, B., Snyder, A. Z., Joo, S. J., Chen, M. Y., Gilmore, A. W., McDermott, K. B., Nelson, S. M., Dosenbach, N. U., Schlaggar, B. L., Mumford, J. A., Poldrack, R. A., & Petersen, S. E. (2015). Functional system and areal organization of a highly sampled individual human brain. Neuron, 87(3), 657–670. https://doi.org/10.1016/j.neuron.2015.06.037
