Tutorial 7: Using Lateralized Custom Parcellations

While NeuroCAPs leverages Nilearn’s fetch functions for the Schaefer and AAL, additional lateralized parcellations can be manually defined. For custom parcellation approaches, three subkeys are recognized: “maps”, “nodes”, and “regions”. For additional details on these subkeys, refer to the “Custom Parcellations” sub-section.

For this demonstration, the extended Human Connectome Project multimodal parcellation (HCPex) [1] [2] from wayalan’s Github will be used.

# Fetching atlas NiFTI image and labels from Github
import os, subprocess, sys

demo_dir = "neurocaps_demo"
os.makedirs(demo_dir, exist_ok=True)

if sys.platform != "win32":
    cmd = [
        [
            "wget",
            "-q",
            "-P",
            demo_dir,
            "https://github.com/wayalan/HCPex/raw/main/HCPex_v1.1/HCPex_LookUpTable.txt",
        ],
        [
            "wget",
            "-q",
            "-P",
            demo_dir,
            "https://github.com/wayalan/HCPex/raw/main/HCPex_v1.1/HCPex.nii.gz",
        ],
    ]
else:
    cmd = [
        [
            "curl",
            "-L",
            "-o",
            f"{demo_dir}\\HCPex_LookUpTable.txt",
            "https://github.com/wayalan/HCPex/raw/main/HCPex_v1.1/HCPex_LookUpTable.txt",
        ],
        [
            "curl",
            "-L",
            "-o",
            f"{demo_dir}\\HCPex.nii.gz",
            "https://github.com/wayalan/HCPex/raw/main/HCPex_v1.1/HCPex.nii.gz",
        ],
    ]

for command in cmd:
    subprocess.run(command, check=True)

The code below fetches a single subject from an OpenNeuro dataset preprocessed with fMRIPrep. Downloading data from OpenNeuro requires pip install openneuro-py ipywidgets or pip install neurocaps[demo].

# [Dataset] doi: doi:10.18112/openneuro.ds005381.v1.0.0
from openneuro import download

# Include the run-1 and run-2 data of a single subject
include = [
    "dataset_description.json",
    "sub-0004/ses-2/func/*run-[12]*events*",
    "derivatives/fmriprep/sub-0004/fmriprep/sub-0004/ses-2/func/*run-[12]*confounds_timeseries*",
    "derivatives/fmriprep/sub-0004/fmriprep/sub-0004/ses-2/func/*run-[12]_space-MNI152NLin*preproc_bold*",
]

download(
    dataset="ds005381",
    include=include,
    target_dir=demo_dir,
    verify_hash=False,
)

👋 Hello! This is openneuro-py 2024.2.0. Great to see you! 🤗

👉 Please report problems 🤯 and bugs 🪲 at
    https://github.com/hoechenberger/openneuro-py/issues

🌍 Preparing to download ds005381 …

📥 Retrieving up to 23 files (5 concurrent downloads).
✅ Finished downloading ds005381.

🧠 Please enjoy your brains.

The first level of the pipeline directory must also have a dataset_description.json file for querying purposes.

import json

desc = {
    "Name": "fMRIPrep - fMRI PREProcessing workflow",
    "BIDSVersion": "1.0.0",
    "DatasetType": "derivative",
    "GeneratedBy": [
        {"Name": "fMRIPrep", "Version": "20.2.0", "CodeURL": "https://github.com/nipreps/fmriprep"}
    ],
}

with open(
    "neurocaps_demo/derivatives/fmriprep/dataset_description.json", "w", encoding="utf-8"
) as f:
    json.dump(desc, f)

Extracting Timeseries

For TimeseriesExtractor.get_bold, only the “maps” subkey (the location of the parcellation) needs to be defined.

# Creating custom parcel approach dictionary and extracting timeseries
parcel_approach = {"Custom": {}}

parcel_approach["Custom"]["maps"] = os.path.join(demo_dir, "HCPex.nii.gz")

from neurocaps.extraction import TimeseriesExtractor

extractor = TimeseriesExtractor(
    space="MNI152NLin6Asym",
    parcel_approach=parcel_approach,
    standardize=True,
    use_confounds=True,
    confound_names="basic",
    low_pass=0.15,
    high_pass=None,
    dummy_scans="auto",
    fd_threshold={
        "threshold": 0.5,
        "outlier_percentage": 0.30,
        "use_sample_mask": True,
        "interpolate": False,
    },
)

# Using chaining to extract timeseries data and save dictionary as a pickle file
extractor.get_bold(
    bids_dir="neurocaps_demo",
    session="2",
    task="DET",
    condition="late",
    condition_tr_shift=2,
    slice_time_ref=0.5,
    n_cores=None,
    flush=True,
    tr=2,
    verbose=True,
).timeseries_to_pickle(output_dir=demo_dir, filename="openneuro_data.pkl")

2025-05-06 14:11:27,418 neurocaps._utils.check_parcel_approach [WARNING] The following subkeys haven't been detected ['nodes', 'regions']. These labels are not needed for timeseries extraction but are needed for plotting.
2025-05-06 14:11:27,419 neurocaps._utils.extraction.check_confound_names [INFO] Confound regressors to be used if available: cosine*, trans_x, trans_x_derivative1, trans_y, trans_y_derivative1, trans_z, trans_z_derivative1, rot_x, rot_x_derivative1, rot_y, rot_y_derivative1, rot_z, rot_z_derivative1, a_comp_cor_00, a_comp_cor_01, a_comp_cor_02, a_comp_cor_03, a_comp_cor_04, a_comp_cor_05.
2025-05-06 14:11:28,975 neurocaps.extraction.timeseriesextractor [INFO] BIDS Layout: ...mples\notebooks\neurocaps_demo | Subjects: 1 | Sessions: 1 | Runs: 2
2025-05-06 14:11:29,043 neurocaps._utils.extraction.extract_timeseries [INFO] [SUBJECT: 0004 | SESSION: 2 | TASK: DET | RUN: 1] Preparing for Timeseries Extraction using [FILE: sub-0004_ses-2_task-DET_run-1_space-MNI152NLin6Asym_res-2_desc-preproc_bold.nii.gz].
2025-05-06 14:11:29,063 neurocaps._utils.extraction.extract_timeseries [INFO] [SUBJECT: 0004 | SESSION: 2 | TASK: DET | RUN: 1] No 'non_steady_state_outlier_XX' columns were found so 0 dummy scans will be removed.
2025-05-06 14:11:29,086 neurocaps._utils.extraction.extract_timeseries [INFO] [SUBJECT: 0004 | SESSION: 2 | TASK: DET | RUN: 1] The following confounds will be used for nuisance regression: cosine00, cosine01, cosine02, cosine03, trans_x, trans_x_derivative1, trans_y, trans_y_derivative1, trans_z, trans_z_derivative1, rot_x, rot_x_derivative1, rot_y, rot_y_derivative1, rot_z, rot_z_derivative1, a_comp_cor_00, a_comp_cor_01, a_comp_cor_02, a_comp_cor_03, a_comp_cor_04, a_comp_cor_05.
2025-05-06 14:11:39,939 neurocaps._utils.extraction.extract_timeseries [INFO] [SUBJECT: 0004 | SESSION: 2 | TASK: DET | RUN: 1] Nuisance regression completed; extracting [CONDITION: late].
2025-05-06 14:11:39,977 neurocaps._utils.extraction.extract_timeseries [INFO] [SUBJECT: 0004 | SESSION: 2 | TASK: DET | RUN: 2] Preparing for Timeseries Extraction using [FILE: sub-0004_ses-2_task-DET_run-2_space-MNI152NLin6Asym_res-2_desc-preproc_bold.nii.gz].
2025-05-06 14:11:39,994 neurocaps._utils.extraction.extract_timeseries [INFO] [SUBJECT: 0004 | SESSION: 2 | TASK: DET | RUN: 2] No 'non_steady_state_outlier_XX' columns were found so 0 dummy scans will be removed.
2025-05-06 14:11:40,006 neurocaps._utils.extraction.extract_timeseries [INFO] [SUBJECT: 0004 | SESSION: 2 | TASK: DET | RUN: 2] The following confounds will be used for nuisance regression: cosine00, cosine01, cosine02, cosine03, trans_x, trans_x_derivative1, trans_y, trans_y_derivative1, trans_z, trans_z_derivative1, rot_x, rot_x_derivative1, rot_y, rot_y_derivative1, rot_z, rot_z_derivative1, a_comp_cor_00, a_comp_cor_01, a_comp_cor_02, a_comp_cor_03, a_comp_cor_04, a_comp_cor_05.
2025-05-06 14:11:50,949 neurocaps._utils.extraction.extract_timeseries [INFO] [SUBJECT: 0004 | SESSION: 2 | TASK: DET | RUN: 2] Nuisance regression completed; extracting [CONDITION: late].

For visualization methods in the TimeseriesExtractor and CAP classes, the nodes and regions need to be defined. Refer to the documentation for each function to determine which subkeys are required, as some methods only need the “maps” subkey, while others require the “nodes” and “regions” subkeys.

The following code defines the nodes and regions of the HCPex parcellation.

import joblib, pandas as pd

# Setting the "nodes"; needed for `TimeseriesExtractor.visualize_bold`; Getting nodes that don't correspond to
# background label
parcel_approach["Custom"]["nodes"] = pd.read_csv(
    os.path.join(demo_dir, "HCPex_LookUpTable.txt"),
    sep=None,
    engine="python",
)["Label"].values[1:]

# Needed for many plotting methods; Setting the region names and their corresponding indices in the nodes list,
# in this case it is just the label id - 1
parcel_approach["Custom"]["regions"] = {
    "Primary Visual": {"lh": [0], "rh": [180]},
    "Early Visual": {"lh": [1, 2, 3], "rh": [181, 182, 183]},
    "Dorsal Stream Visual": {"lh": range(4, 10), "rh": range(184, 190)},
    "Ventral Stream Visual": {"lh": range(10, 17), "rh": range(190, 197)},
    "MT+ Complex": {"lh": range(17, 26), "rh": range(197, 206)},
    "SomaSens Motor": {"lh": range(26, 31), "rh": range(206, 211)},
    "ParaCentral MidCing": {"lh": range(31, 40), "rh": range(211, 220)},
    "Premotor": {"lh": range(40, 47), "rh": range(220, 227)},
    "Posterior Opercular": {"lh": range(47, 52), "rh": range(227, 232)},
    "Early Auditory": {"lh": range(52, 59), "rh": range(232, 239)},
    "Auditory Association": {"lh": range(59, 67), "rh": range(239, 247)},
    "Insula FrontalOperc": {"lh": range(67, 79), "rh": range(247, 259)},
    "Medial Temporal": {"lh": range(79, 87), "rh": range(259, 267)},
    "Lateral Temporal": {"lh": range(87, 95), "rh": range(267, 275)},
    "TPO": {"lh": range(95, 100), "rh": range(275, 280)},
    "Superior Parietal": {"lh": range(100, 110), "rh": range(280, 290)},
    "Inferior Parietal": {"lh": range(110, 120), "rh": range(290, 300)},
    "Posterior Cingulate": {"lh": range(120, 133), "rh": range(300, 313)},
    "AntCing MedPFC": {"lh": range(133, 149), "rh": range(313, 329)},
    "OrbPolaFrontal": {"lh": range(149, 158), "rh": range(329, 338)},
    "Inferior Frontal": {"lh": range(158, 167), "rh": range(338, 347)},
    "Dorsolateral Prefrontal": {"lh": range(167, 180), "rh": range(347, 360)},
    "Subcortical Regions": {"lh": range(360, 393), "rh": range(393, 426)},
}

# Saving the dictionary as a pickle file for long-term storage
with open(os.path.join(demo_dir, "HCPex_dict.pkl"), "wb") as f:
    joblib.dump(parcel_approach, f)

Visualizing BOLD data

# Setting updated parcellation approach
extractor.parcel_approach = parcel_approach

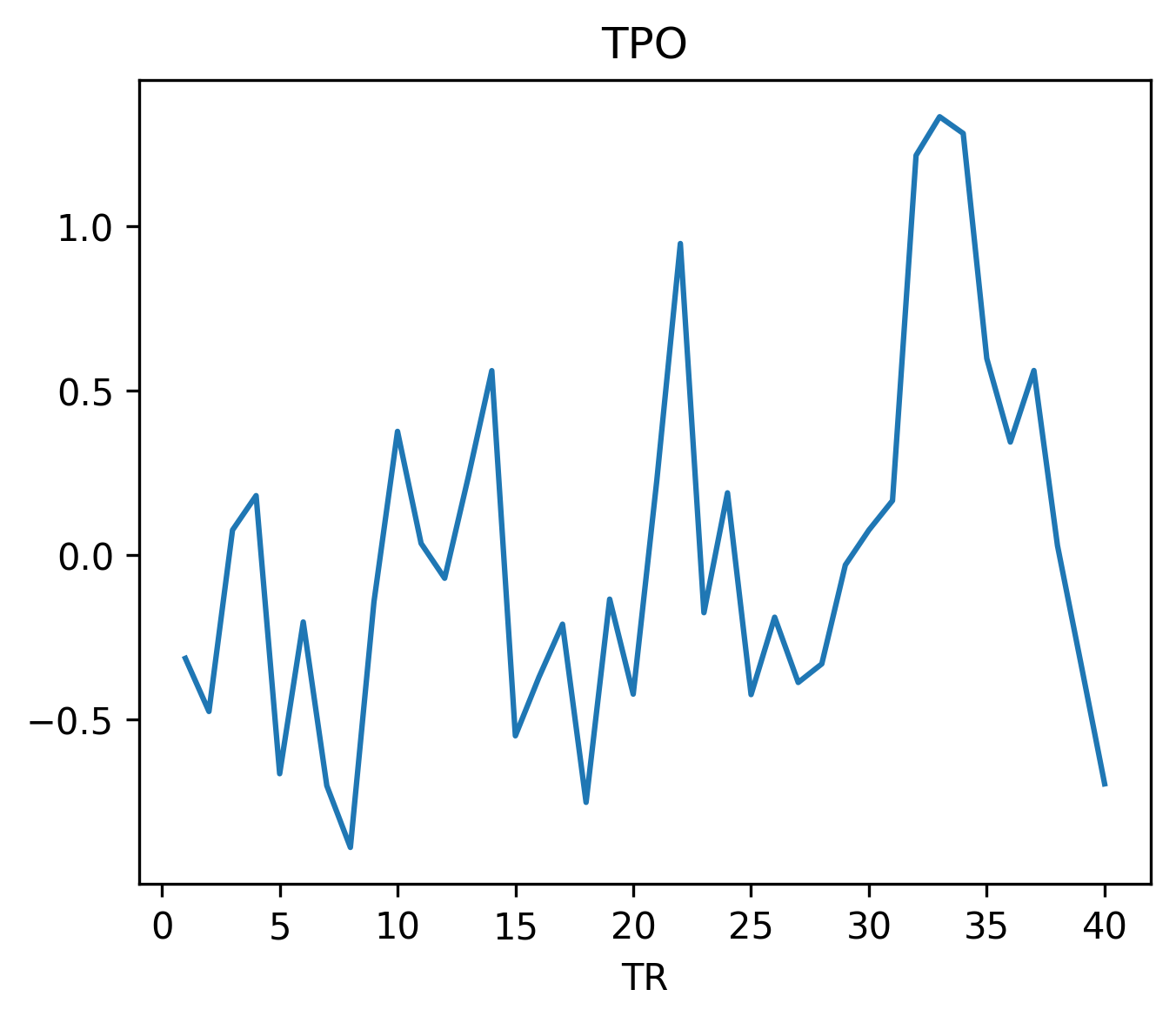

extractor.visualize_bold(
    subj_id="0004", run=1, region="TPO", figsize=(5, 4), output_dir=demo_dir, filename="HCPex_TPO"
)

Extracting CAPs

The following code uses CAP.get_bold to extract two CAPs.

from neurocaps.analysis import CAP

# Will use the setter method to set the parcel approach later since a parcel approach
# does not need to be defined for the `get_caps` method
cap_analysis = CAP(parcel_approach=None)

# Either method works
cap_analysis.get_caps(subject_timeseries=extractor.subject_timeseries, n_clusters=2)

# Alternative approach using pickle file:
# cap_analysis.get_caps(subject_timeseries="openneuro_data.pkl", n_clusters=2)

2025-05-06 14:12:14,255 neurocaps.analysis.cap [INFO] No groups specified. Using default group 'All Subjects' containing all subject IDs from `subject_timeseries`. The `self.groups` dictionary will remain fixed unless the `CAP` class is re-initialized.

Surface Plotting with and without KNN Interpolation

For the following code, the CAPs will be plotted to surface space with and without KNN (K-Nearest Neighbors) interpolation. Some parcellations may have issues projecting from MNI space to fsLR space. The knn_dict parameter, which is available in both CAP.caps2niftis() and CAP.caps2surf() can be used to improve the visualization. The KNN method uses a reference atlas (either Schaefer or AAL) as a mask to determine the non-background voxels to interpolate prior to projecting from MNI to fsLR space. Note, for this method, only the “maps” subkey is required, the other subkeys are optional.

# Setting parcellation approach using pickle file
cap_analysis.parcel_approach = os.path.join(demo_dir, "HCPex_dict.pkl")

# Without KNN interpolation
cap_analysis.caps2surf(
    size=(500, 100),
    layout="row",
    color_range=[-1, 1],
    output_dir=demo_dir,
    suffix_title="- No KNN Interpolation",
    suffix_filename="original",
)

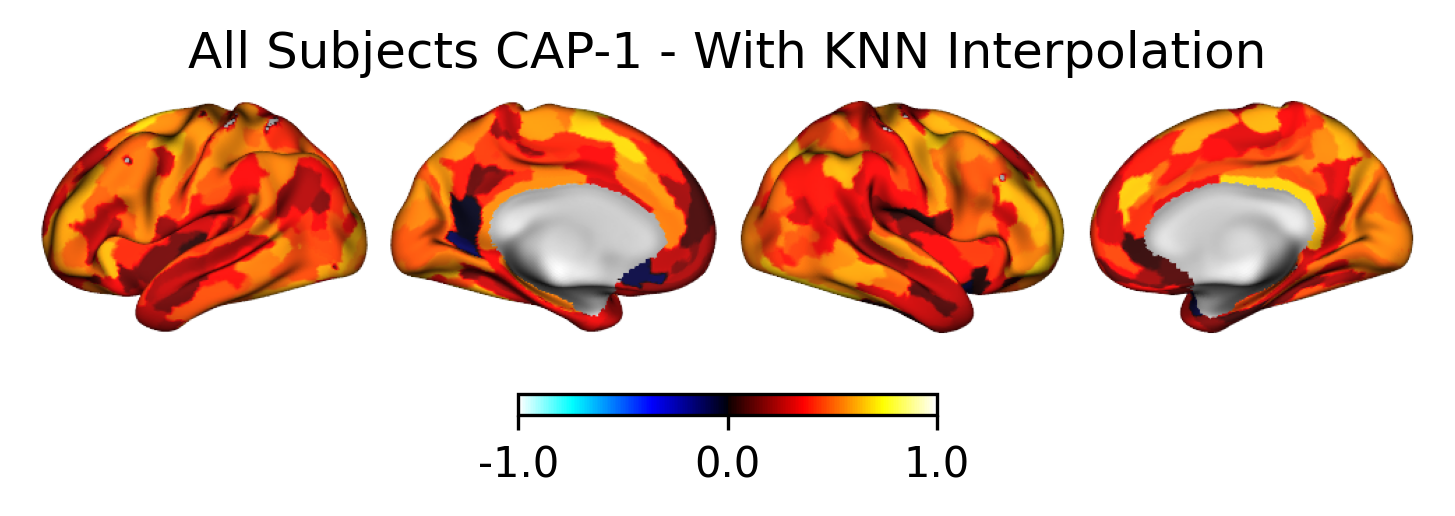

# With KNN interpolation
cap_analysis.caps2surf(
    size=(500, 100),
    layout="row",
    color_range=[-1, 1],
    knn_dict={"k": 5, "reference_atlas": "Schaefer"},
    output_dir=demo_dir,
    suffix_title="- With KNN Interpolation",
    suffix_filename="KNN",
)

2025-05-06 14:15:00,435 neurocaps.analysis.cap [WARNING] Defaulting to 1mm resolution for the Schaefer atlas since 'resolution_mm' was not specified in `knn_dict`.

---

[1]

Huang, CC., Rolls, E.T., Feng, J. et al. An extended Human Connectome Project multimodal parcellation atlas of the human cortex and subcortical areas. Brain Struct Funct 227, 763–778 (2022). https://doi.org/10.1007/s00429-021-02421-6

[2]

Huang, C.-C., Rolls, E. T., Hsu, C.-C. H., Feng, J., & Lin, C.-P. (2021). Extensive Cortical Connectivity of the Human Hippocampal Memory System: Beyond the “What” and “Where” Dual Stream Model. Cerebral Cortex, 31(10), 4652–4669. https://doi.org/10.1093/cercor/bhab113
