Tutorial 1: Using `neurocaps.extraction.TimeseriesExtractor`

This module is designed to perform timeseries extraction, nuisance regression, and visualization. Additionally, it generates the necessary dictionary structure required for CAP. If the BOLD images have not been preprocessed using fMRIPrep (or a similar pipeline), the dictionary structure can be manually created.

The output in the Extracting Timeseries section is generated from a test run using GitHub Actions. This test uses a truncated version of the open dataset provided by Laumann & Poldrack [1] and was obtained from the OpenfMRI database, accession number ds000031.

Extracting Timeseries

Note: when an asterisk (*) follows a name, all confounds that start with the preceding term will be automatically included. For example, placing an asterisk after cosine (cosine*) will utilize all parameters that begin with cosine.

from neurocaps.extraction import TimeseriesExtractor

dir = os.path.dirname(__file__)

confounds = ["Cosine*", "aComp*", "Rot*"]

parcel_approach = {"Schaefer": {"n_rois": 100, "yeo_networks": 7, "resolution_mm": 2}}

extractor = TimeseriesExtractor(
    space="MNI152NLin2009cAsym",
    parcel_approach=parcel_approach,
    standardize="zscore_sample",
    use_confounds=True,
    detrend=True,
    low_pass=0.15,
    high_pass=None,
    confound_names=confounds,
)

bids_dir = os.path.join(dir, "ds000031_R1.0.4_ses001-022/ds000031_R1.0.4")

extractor.get_bold(
    bids_dir=bids_dir,
    session="002",
    task="rest",
    pipeline_name="fmriprep_1.0.0/fmriprep",
    tr=1.2,
    progress_bar=True,  # Parameter available in versions >= 0.21.5
)

2025-01-31 13:21:59,933 neurocaps._utils.check_parcel_approach [WARNING] 'yeo_networks' not specified in `parcel_approach`. Defaulting to 7 networks.
2025-01-31 13:21:59,933 neurocaps._utils.check_parcel_approach [WARNING] 'resolution_mm' not specified in `parcel_approach`. Defaulting to 1mm.
2025-01-31 13:21:59,938 neurocaps._utils.extraction.check_confound_names [INFO] Confound regressors to be used if available: Cosine*, aComp*, Rot*.
2025-01-31 13:22:11,745 neurocaps._utils.extraction.extract_timeseries [INFO] [SUBJECT: 01 | SESSION: 002 | TASK: rest | RUN: 001] Preparing for Timeseries Extraction using [FILE: sub-01_ses-002_task-rest_run-001_space-MNI152NLin2009cAsym_desc-preproc_bold.nii.gz].
2025-01-31 13:22:11,752 neurocaps._utils.extraction.extract_timeseries [INFO] [SUBJECT: 01 | SESSION: 002 | TASK: rest | RUN: 001] The following confounds will be used for nuisance regression: Cosine00, Cosine01, Cosine02, Cosine03, Cosine04, Cosine05, Cosine06, aCompCor00, aCompCor01, aCompCor02, aCompCor03, aCompCor04, aCompCor05, RotX, RotY, RotZ.
Processing Subjects: 100%|██████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████| 1/1 [00:05<00:00,  5.73s/it]

print(extraction.subject_timeseries)

 {'01': {'run-001': array([[-0.12410211, -0.746016  , -0.9138416 , ...,  0.12293668,
 -0.3167036 , -0.4593077 ],
[-1.0730965 ,  0.88747275,  0.83726895, ..., -0.9314818 ,
  0.5686499 ,  0.9783575 ],
[-0.5288149 ,  0.62266237,  0.6349383 , ..., -0.5331197 ,
  0.5261529 ,  0.5858582 ],
...,
[ 0.32443312, -0.42479128, -0.43596116, ...,  0.5425763 ,
 -0.2863486 , -0.31798226],
[ 0.94420713, -0.7662241 , -0.6925075 , ...,  1.7636685 ,
 -0.4194046 , -0.5691561 ],
[ 0.4901481 ,  0.33806482,  0.48850006, ..., -0.29197463,
 -0.08600576, -0.08736482]], dtype=float32)}}

Saving Timeseries

extractor.timeseries_to_pickle(output_dir=dir, filename="rest_Schaefer.pkl")

Visualizing Timeseries

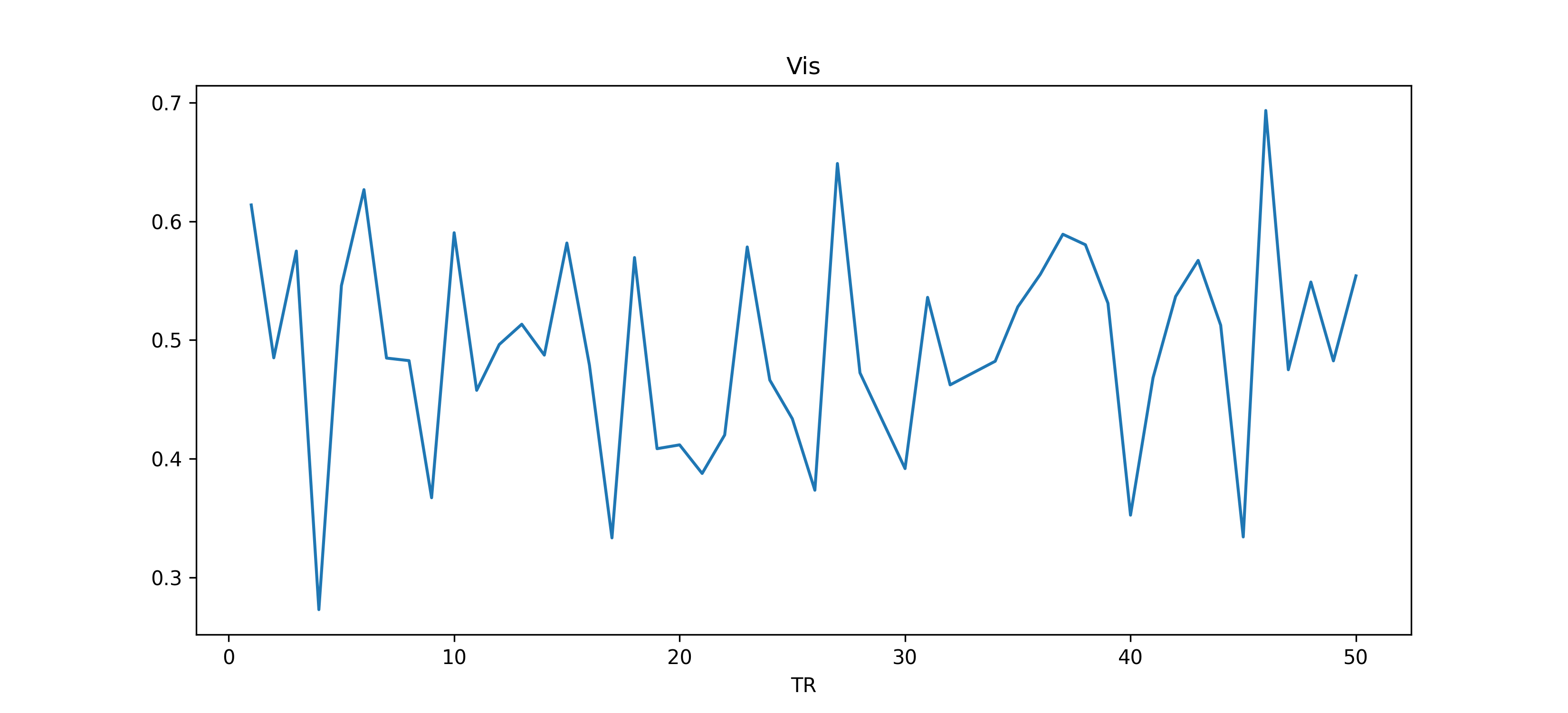

# Visualizing a region
extractor.visualize_bold(subj_id="01", region="Vis")

../_images/visualize_timeseries_regions.png

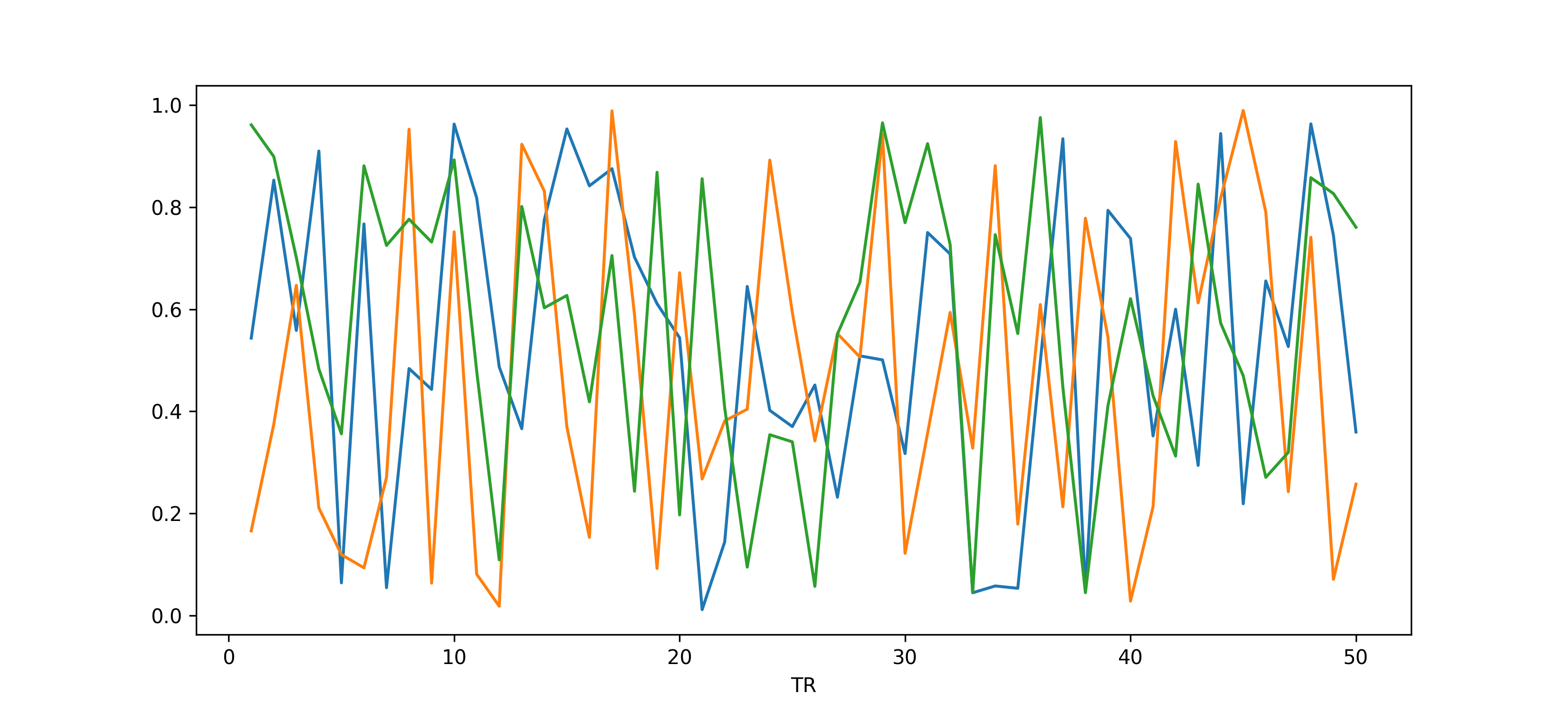

# Visualizing a several nodes
extractor.visualize_bold(subj_id="01", run="001", roi_indx=[0, 1, 2])
extractor.visualize_bold(subj_id="01", run="001", roi_indx=["LH_Vis_1", "LH_Vis_2", "LH_Vis_3"])

../_images/visualize_timeseries_nodes1.png
